Injection & Extrusion Moulding for Fittings

INJECTION MOULDING – These Machines are very versatile and used with Various Materials and various Applications from House hold to Engineering Products.

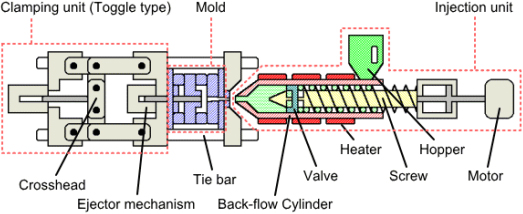

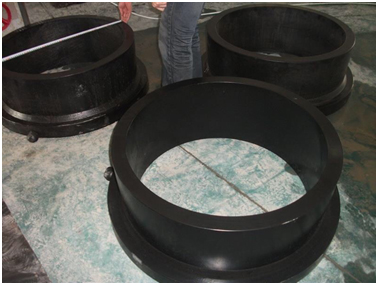

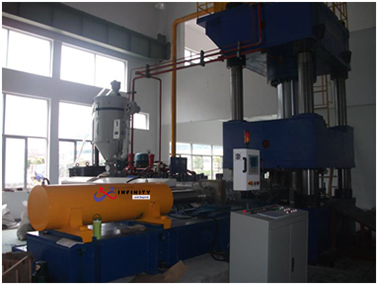

EXTRUSION MOULDING – These Machines are applicable for Larger Diameter HDPE Fittings used in Sewerage such as STUB FLANGE, REDUCER, ELBOW, TEE AND CROSS.

Technical Specifications for Injection Moulding

TECHNICAL SPECIFICATIONS FOR UPVC / CPVC FITTINGS
Injection Unit	UNIT	IE-125						IE-150						IE-180						IE-250
Screw Diameter	mm	40	45	50	45	50	55	45	50	55	55	60	65	55	60	65	60	65	70	60	65	70
Screw L/D Ratio		22.5	20	18	22.5	20	18	22.5	20	18	23	20	18	23	20	18	22.5	21	20	22.5	21	20
Shot Weight CPVC	gms	294	372	459	465	574	695	465	574	695	705	839	985	705	839	985	923	##	1257	923	1084	1257
Injection Pressure	bar	2230	1762	1428	2489	2016	1666	2489	2016	1666	2114	1777	1514	2114	1777	1514	2025	1725	1488	2025	1725	1488
Screw Stroke	mm		200			250			250			250			250			275			275
Screw Speed	RPM		0-100			0-100			0-100			0-72			0-72			0-62			0-62
Clamping Unit
Clamp Force	Ton	125						150						180						250
Clamp Stroke	mm	380						435						475						540
Tie Bar Distance	mm	420X420						470X470						520X520						570X570
Max. Mould Height	mm	450						520						560						600
Min. Mould Height	mm	160						180						200						200
Ejector stroke	mm	140						140						150						150
Ejector Force	Ton	5						5						7						7
General
Max. pressure	Mpa	16						16						16						16
Pump Motor	Kw	13						18.5						18.5						22
Heater Power	Kw	8						12.5						14						15.2
Machine Weight	Ton	4.3						6						7.2						8.3
L X W X H	Mtr	4.6X1.5X2.1						5.1X1.5X2.3						5.7X1.8X2.4						6.2X1.6X2.6

TECHNICAL SPECIFICATIONS FOR PP
Injection Unit	UNIT	IE-80			IE-100			IE-125			IE-150			IE-180
Screw Diameter	mm	25	30	35	32	36	40	40	45	50	45	50	55	55	60	65
Screw L/D Ratio		22.5	20	18	22.5	20	18	22.5	20	18	22.5	20.7	18.8	22.5	20	18
Shot Weight PP	gms	56	80	109	98	124	153	203	257	317	321	398	480	528	629	738
Injection Pressure	bar	2304	1600	1176	2350	1857	1504	2230	1762	1428	2133	1666	1376	2110	1775	1510
Screw Stroke	mm	140			150			200			250			275
Screw Speed	RPM	0-213			0-230			0-160			0-180			0-160
Clamping Unit
Clamp Force	Ton	80			100			125			150			180
Clamp Stroke	mm	310			350			380			435			475
Tie Bar Distance	mm	340 x 340			370×370			420X420			470X470			520X520
Max. Mould Height	mm	350			380			450			520			560
Min. Mould Height	mm	120			150			160			180			200
Ejector stroke	mm	90			120			140			140			150
Ejector Force	Ton	2.3			3.8			5			5			7
General
Max. pressure	Mpa	16			16			16			16			16
Pump Motor	Kw	11			13			13			18.5			18.5
Heater Power	Kw	5.8			7.5			8			12.5			14
Machine Weight	Ton	2.8			3.4			4.3			6			7.2
L X W X H	Mtr	4.1 x 1.1 x 1.6			4.3 x 1.3 x 2.0			4.6×1.5×2.1			5.1×1.5×2.3			5.7×1.6×2.4

Injection moulding and extrusion moulding for engineering fittings

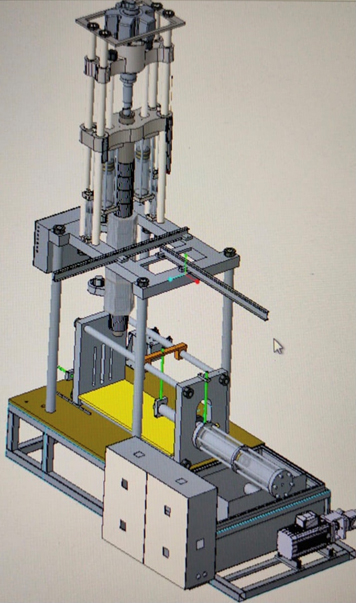

Specifications of Vertical Injection Moulding Machine

VERTICAL INJECTION MOULDING MACHINE
DESCRIPTION	UNIT
SHOT WEIGHT CPVC	GM	300	600
Screw Diameter	MM	45	55
Screw Stroke	MM	250	250
Screw Speed	RPM	0-140	0-85
Screw L/D Ratio		20	20
Max. Mould Height	MM	300	450
Max. Opening	MM	175	175
Clamping Force	Kg/Sq.cm.	150	150
Heating Capacity	KW	5.5	8.3
Oil Capacity	LTR	250	350
Electric Motor	HP	15	15
